10 Essential Tips to Prevent Hose Assembly Leaks in Hydraulic Systems
2025-10-28
Hydraulic hose leaks in heavy-duty equipment can disrupt your operations, compromise safety, and drive up expenses. Common issues—such as tube erosion, abrasion, or poor routing—often lead to failures. Consider the impact:
| Cost Type | Estimated Cost Range |
|---|---|
| Average Operational Costs | $76,000 – $100,000/year |
| Equipment Stoppage Losses | Significant: 80% from leaks |

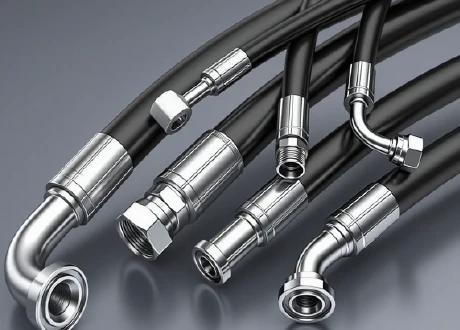

You need a hose assembly that meets rigorous standards. Novafit hose assembly undergoes 100% pressure leak testing, ensuring reliable performance in demanding environments.
Hydraulic Hose: Selection, Inspection, and Safety
- Select the right hydraulic hose by matching its specifications to your equipment’s needs. Consider size, pressure rating, and temperature to ensure reliable performance.
- Regularly inspect your hydraulic hoses for wear and leaks. Daily checks in high-risk environments can prevent unexpected failures and costly downtime.
- Use compatible fittings and connectors to maintain system integrity. Mismatched components can lead to leaks, equipment damage, and safety hazards.
Select the Right Hose Assembly
Choosing the right hydraulic hose for your equipment is the first step in preventing leaks and ensuring long-term reliability. You need to consider several critical factors to match your hose assembly to demanding industrial applications.
Match Hose Specs to Application
When you select a hydraulic hose, you must evaluate the specific requirements of your machinery. Here are the most important factors to consider:
- Size and Length: Select the correct inner and outer diameter and length to maintain proper flow and prevent pressure drops.
- Pressure Rating: Know the maximum operating pressure your system requires. For example, mining equipment often needs hoses rated for extreme pressures.
- Temperature: Ensure the hose can withstand the operating temperature range of your environment.
- Ends and Fittings: Use fittings that match the hose specifications for a secure, leak-free connection.
- Supplier Reputation: Work with trusted suppliers like Novafit, who offer a full range of hose assemblies for low, medium, and high-pressure applications.
Tip: Always verify that your hose assembly meets or exceeds industry standards such as SAE J517 or ISO 6803. This ensures your equipment operates safely and efficiently.
Ensure Fluid and Environment Compatibility
Fluid compatibility is essential for leak prevention. If the hydraulic fluid reacts with the hose material, the hose can degrade and fail. You must select materials that match both the fluid and the environment.
| Material | Compatible Fluids | Temperature Range | Notes |
|---|---|---|---|
| Nitrile Rubber (NBR) | Petroleum-based fluids | -40°F to 212°F | Excellent oil resistance |
| EPDM | Biodegradable, water-glycol | Not specified | Avoid petroleum-based oils |
| PTFE | Almost all chemicals | -65°F to 450°F | Ideal for extreme conditions |
For example, construction machinery exposed to high heat or chemicals may require PTFE hoses for maximum durability. Always confirm compatibility to avoid costly downtime.
Novafit’s rigorous 100% pressure leak testing and compliance with global standards ensure your hydraulic hose performs reliably, even in the harshest environments.
Discover the reliability of Novafit’s Hose Assembly for your hydraulic needs. Learn more here.

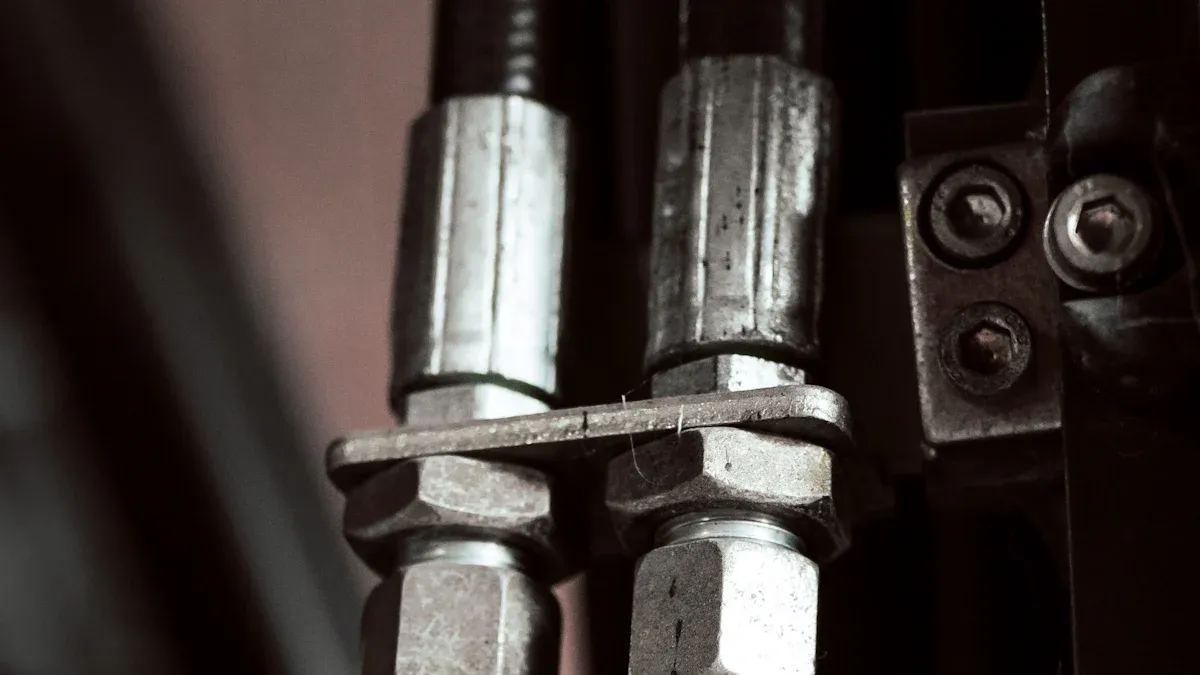

Use Proper Fittings and Connectors
Choose Compatible Fittings
Selecting compatible fittings and connectors is critical for maintaining the integrity of your hydraulic systems. When you use mismatched or incompatible components, you expose your equipment to a range of risks. The following table outlines the potential consequences:
| Consequence | Description |
|---|---|
| Equipment Damage | Accelerated wear on components, leading to leaks and hose bursts. |
| Safety Hazards | Risks to personnel, including high-pressure fluid injection injuries. |
| System Failures | Incompatible components can lead to system breakdowns and operational inefficiencies. |
| Leaks | Caused by mismatched thread types, damaged seals, or improper torque. |
| Hose Bursts | Result from exceeding pressure ratings or using incompatible combinations. |
| Fitting Blow-offs/Crimp Failures | This occurs due to incorrect crimping procedures or using unapproved combinations. |
| Contamination and Component Damage | Internal degradation from incompatible media can contaminate hydraulic fluid. |
| High-Pressure Fluid Injection | Even small leaks can lead to severe injuries, necessitating immediate medical attention. |
You should always verify that your fittings match the hose type, pressure rating, and fluid compatibility. For example, in mining or construction machinery, a single incompatible fitting can halt operations and create costly downtime.
Tip: Standardize fittings across your fleet to simplify maintenance and reduce the risk of assembly errors.
Verify Correct Sizing
Correct sizing of fittings and connectors plays a vital role in preventing leaks and ensuring system reliability. When you select the right size, you maintain stable pressure and flow rates. Consider the following points:
- Incorrectly sized fittings can lead to leaks, as loose fittings allow hydraulic fluid to escape.
- Leaks reduce system efficiency and create hazardous conditions.
- Proper sizing ensures stable pressure and flow rates, which are essential for preventing leaks.
In large-scale industrial equipment, even a minor sizing error can result in significant operational losses. Always use manufacturer guidelines and precision measuring tools when assembling your hydraulic hose systems.

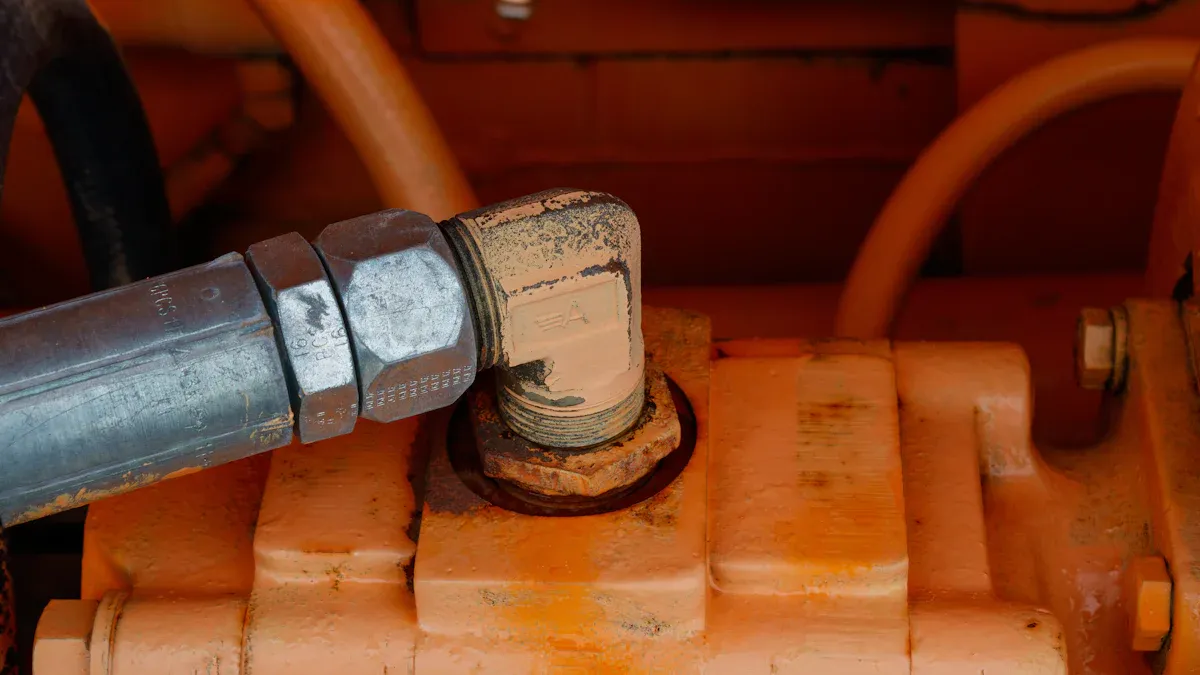

Follow Assembly Procedures
Adhere to Manufacturer Guidelines
You must follow manufacturer guidelines during every hose assembly installation. These instructions help you avoid common mistakes and ensure leak-free performance in your hydraulic hose systems. Manufacturers provide specific torque values, crimping procedures, and routing recommendations for each application. When you ignore these details, you risk equipment downtime and costly repairs.
Here is a summary of recommended assembly steps for minimizing leaks:
| Step | Description |
|---|---|
| Selecting the Right Tools | Use torque wrenches and hydraulic crimping machines for precise assembly. |
| Fitting Preparation | Clean fittings, inspect threads, and verify specifications before installation. |
| Correct Torque Application | Apply the specified torque to prevent leaks from over- or under-tightening. |
| Crimping Procedures | Calibrate crimping machines and follow proper crimping techniques. |
| Proper Routing | Route hoses to avoid sharp bends and contact with moving parts. |
| Adequate Support | Install clamps and supports to reduce movement and stress. |
| Avoiding Twists and Turns | Ensure hoses remain straight and within their recommended bend radius. |
Tip: Always consult the manufacturer’s documentation before starting any hose assembly project. This practice reduces the risk of leaks and extends the life of your equipment.
Use Proper Tools
Using the correct tools during installation is essential for preventing leaks in your hose assembly. You should avoid these common mistakes:
- Improper fitting selection can cause leaks.
- Overtightening fittings often leads to damaged threads and persistent leaks.
- Failing to identify the true source of a leak results in wasted time and ineffective repairs.
Precision tools such as torque wrenches and calibrated crimping machines help you achieve secure connections. In large-scale operations, these tools ensure consistent quality and reliability across your fleet. When you invest in proper equipment and training, you protect your hydraulic hose systems and maintain operational efficiency.
Prevent Twisting and Bending
Proper installation and handling of hydraulic hoses play a vital role in preventing leaks and extending equipment life. In large-scale operations, such as mining or construction, even minor mistakes in hose routing can lead to costly downtime and safety hazards.
Maintain Bend Radius
You must always respect the minimum bend radius specified for each hydraulic hose. Bending a hose too tightly can weaken its internal structure and cause leaks, cracks, or even ruptures. When you maintain the correct bend radius, you protect the hose from unnecessary stress and ensure smooth fluid flow.
- The minimum bend radius is essential for hose longevity and reliability.
- Tight bends can damage internal components, leading to leaks or bursts.
- Sharp curves restrict flow, reduce system efficiency, and increase pressure loss.
Tip: Always check the manufacturer’s guidelines for the minimum bend radius before installing hoses on your equipment. This simple step can prevent unexpected failures in demanding environments.
Avoid Hose Twisting
Twisting a hydraulic hose during installation or operation can create serious problems. When you twist a hose, you introduce stress points that accelerate wear and tear, especially on the outer cover and reinforcement layers. Over time, this can result in small cracks or abrasions that compromise the hose’s structural integrity.
- Twisting misaligns internal reinforcement layers, increasing the risk of bursts.
- Localized stress from twisting can lead to catastrophic failures and fluid leaks.
- High-pressure fluid release from a burst hose can create dangerous situations for your team.
You should always ensure hoses are installed straight and free from twists to maximize safety and performance in your hydraulic systems.
Secure and Protect Hoses
Use Clamps and Sleeves
You need to secure every hydraulic hose with the right clamps and protective sleeves to prevent leaks and extend service life. In demanding environments like mining or construction, hoses face constant threats from abrasion, vibration, and crushing. The right clamp or sleeve can make a significant difference in system reliability.
| Clamp Type | Features |
|---|---|
| Junior® Smooth ID Clamp | High-retention force, smooth inside diameter to prevent sleeve damage, ideal for abrasion resistance, compatible with IT Series Pneumatic Tools for consistent installations |
| Tie-Lok® Preformed Tie | Lightweight, low-profile design, rounded edges for safety, unlimited diameter reduction, suitable for automated or hand-tool installation |
You should also use hose protection products to shield hoses from:
- Ultraviolet rays
- Extreme temperature exposure
- Debris
- Abrasion
- Vibration
- Crushing
Tip: Select clamps and sleeves that match your application’s specific hazards to maximize hose longevity and reduce downtime.
Route Away from Hazards
Proper routing keeps your hydraulic hose safe from mechanical and environmental dangers. When you plan hose paths, you protect your equipment and reduce maintenance costs.
- Provide sufficient slack to accommodate pressure changes and prevent stress on fittings.
- Avoid clamping hoses at bends to allow for natural flexing and reduce stress concentration.
- Use proper angle adapters to prevent sharp bends and internal damage.
- Distribute the hose length to avoid concentrated flexing in one area.
- Install clamps and supports to minimize movement and early failure.
Following manufacturer guidelines for routing, including respecting the minimum bend radius, helps prevent kinking and collapse. This approach ensures steady flow and long-term reliability for your hydraulic systems.
Shield from Environmental Hazards
Protect from Heat and Chemicals
You face many environmental hazards in heavy-duty industries. Heat and chemicals can quickly degrade your hydraulic hose, leading to leaks and costly downtime. High temperatures cause hardening and cracking, while exposure to solvents or oils can soften or break down hose materials. You can prevent these issues by using heat-resistant sleeves and chemical-resistant covers. These protective solutions shield hoses from thermal degradation and chemical attack, extending service life and improving reliability.
Note: Hot hydraulic fluid can cause severe burns if it leaks. Leaks in high-temperature environments also create fire risks and slippery surfaces, increasing the chance of workplace accidents.
You should always select protective covers that match your operating environment. For example, mining equipment often operates near hot engines and hydraulic fluids. In these cases, heat shields are essential for safety and performance.
Guard Against Abrasion
Abrasion remains one of the most common causes of hydraulic hose leaks in industrial settings. External friction from rough surfaces or moving parts wears down the hose cover, exposing reinforcement layers and increasing the risk of leaks. You can minimize abrasion by:
- Installing protective sleeves or guards in high-contact areas.
- Routing hoses away from sharp edges and moving machinery.
- Using clamps to secure hoses and prevent unnecessary movement.
Common environmental hazards that contribute to leaks include:
- Internal fluid flow erosion
- Microcracks in rubber compounds
- Fatigue in reinforcement layers
- Chemical changes in elastomers
You should inspect hoses regularly for signs of wear and replace them before leaks occur. By taking these steps, you protect your equipment and maintain safe, efficient operations.
Inspect and Maintain Regularly
Check for Wear and Leaks
You need to inspect your hydraulic hose systems on a regular schedule to prevent unexpected failures. In high-demand environments like mining or construction, daily and weekly checks help you spot early signs of trouble. Use the following table to guide your inspection routine:
| Inspection Type | Frequency | Purpose |
|---|---|---|
| Daily Visual Checks | Daily | Identify obvious signs of leaks, cracks, or significant wear. |
| Weekly Physical Inspections | Weekly | Include pressure testing and check for abnormal bulges and fittings. |
| Monthly Comprehensive Inspections | Monthly | Detailed checks using advanced methods to identify internal damages. |
| High-Risk Applications | Before each shift | Ensure safety and functionality in demanding applications like construction. |
During inspections, look for these warning signs that indicate a leaking hydraulic hose or one at risk of failure:
- Visible abrasions or scuff marks
- Cracks, cuts, or surface damage
- Bulges or blistering
- Oil leakage or weeping at fittings
- Hose stiffness or brittleness
- Corrosion on fittings
- Flattened or kinked hoses
- Hoses past their recommended service life
Tip: Fluid leaks, reduced system performance, or strange noises often signal hose wear. Address these issues immediately to avoid costly downtime.
Replace at Intervals
You should not wait for visible damage before replacing hoses. Industry best practices recommend replacing hydraulic hoses every 5-7 years, even if they appear in good condition. In severe service conditions—such as high temperatures, frequent flexing, or harsh environments—replace hoses every 2-3 years. Regular replacement reduces the risk of sudden leaks and keeps your equipment running safely.
- Schedule replacements based on your application’s risk level.
- Keep detailed records of installation and replacement dates.
- Use only high-quality assemblies designed for your specific industry needs.
By following a strict inspection and replacement schedule, you protect your operations from the dangers and costs of a leaking hydraulic hose.
Control System Pressure
Maintaining stable system pressure is essential for preventing leaks and protecting your hydraulic equipment. In large-scale operations, such as mining or construction, pressure fluctuations can quickly lead to costly downtime and safety risks.
Prevent Pressure Surges
Pressure surges often occur when you operate valves quickly or when return lines become blocked. These sudden spikes can exceed the rated limits of your hydraulic hoses. When this happens, you risk damaging the hose from the inside, which can result in a leaking hydraulic hose or even a burst.
- Pressure surges can exceed the rated pressure limits of hydraulic hoses, leading to internal damage.
- Quick valve movements or blocked return lines often cause these pressure spikes.
- When the pressure goes beyond the hose’s tolerance, you may see sudden bursts, leaks, or complete failures.
Tip: Train your operators to use valves smoothly and monitor system pressure regularly. Early detection of pressure spikes helps you avoid unexpected failures.
Use Relief Valves
Relief valves play a critical role in protecting your hydraulic system from overpressure. By installing the right type of relief valve, you can ensure that excess pressure is safely managed, reducing the risk of leaks and equipment damage. Consider these common relief valve types for your industrial applications:
- Pilot-Operated Relief Valves: These valves offer smooth, quiet operation and adjust easily under pressure, making them ideal for systems with frequent pressure changes.
- Balanced Poppet Relief Valves: Known for low leakage and precision, these valves respond quickly and provide fine-tuning control in high-performance machinery.
- Electro-Proportional Relief Valves: These valves deliver advanced, proportional control for systems that require precise pressure management.
- Ventable Relief Valves: These valves vent excess pressure to a safe location, combining pressure regulation and unloading in one solution.
Selecting the right relief valve helps you maintain safe operating conditions and extends the life of your hydraulic hoses. In demanding environments, this proactive approach keeps your equipment running efficiently and reduces the risk of leaks.
Train for Preventing Hydraulic Hose Leaks
Educate on Best Practices
You must invest in ongoing training to ensure your maintenance teams understand the best practices for preventing hydraulic hose leaks. In industries such as mining and construction, hands-on workshops provide practical experience with hose assembly installation and replacement. You should supply up-to-date manuals and resources so your staff can reference those specifications and installation procedures quickly. Certification programs help your personnel develop specialized skills and maintain high standards. Regular assessments identify knowledge gaps and allow you to address them before leaks occur.
Effective training methods include:
- Conducting hands-on workshops for hose replacement and maintenance.
- Providing manuals and technical resources for easy reference.
- Implementing certification programs for specialized skills.
- Scheduling regular training sessions focused on leak detection and safe operating practices.
- Assessing personnel knowledge to identify areas for improvement.
Tip: Encourage your team to take a proactive approach. Staff who recognize early warning signs can prevent costly downtime and equipment damage.
Promote Safety Culture
You must foster a strong safety culture to reduce the risk of leaks in your hydraulic systems. When your team values safety, they perform regular inspections and follow established protocols. Educated personnel report hazards quickly, preventing incidents related to hose assembly failures. A safe work environment boosts morale and productivity, which leads to better maintenance practices.
| Safety Culture Benefits | Impact on Operations |
|---|---|
| Regular inspections | Early identification of potential issues |
| Adherence to safety protocols | Fewer leaks and equipment failures |
| Hazard reporting | Faster response to risks |
| Improved morale | Increased productivity and reliability |
You set the standard for safety in your organization. By prioritizing training and safety, you build a team that excels at preventing hydraulic hose leaks.
Document Hose Assembly Lifecycles
Track Service Records
You need to track the lifecycle of every hose assembly in your operation. Accurate service records help you plan preventive maintenance and avoid unexpected leaks. In industries like mining or construction, a single hose failure can halt production and increase costs. By keeping detailed logs, you can monitor inspection results, repairs, and replacements. This approach helps you spot patterns of wear and address issues before they escalate.
- Maintain regular inspection and maintenance logs for each hose.
- Use hose identification systems, such as serial numbers or barcodes, to simplify tracking.
- Conduct full plant surveys to ensure every hose assembly is accounted for.
- Keep records of all repairs and replacements to support proactive care.
- Analyze inspection data to identify recurring problems and schedule timely maintenance.
Keeping accurate records ensures operational efficiency and safety. You can address wear and tear before it leads to leaks or failures.
Use Asset Management Tools
Asset management tools give you a powerful way to oversee hose assemblies across your entire fleet. These systems use barcodes, RFID tags, and digital portals to track each hose from installation to replacement. You gain real-time access to service history, test documents, and work orders. Automated alerts remind you when inspections or replacements are due, reducing the risk of downtime.
| Benefit | Description |
|---|---|
| Reduced downtime events | Minimizes interruptions in operations due to hose failures. |
| Faster component replacement | Speeds up the process of replacing hoses when necessary. |
| Improved quality control | Ensures that all components meet required standards before use. |
| Complete usage history | Provides a full record of each hose’s lifecycle for better management. |
| Comprehensive recall management | Facilitates quick action in case of product recalls. |
| Data-driven performance analysis | Uses data to enhance decision-making regarding hose management. |
| Higher rates of regulatory compliance | Ensures adherence to safety and operational regulations. |
| Increased customer confidence | Builds trust with clients through reliable service and product quality. |
| Enhanced risk mitigation | Reduces the likelihood of accidents or failures due to hose issues. |
| Minimize the chance of fines | Lowers the risk of penalties from regulatory bodies due to leaks. |
You can use platforms that provide 24/7 access to hose data, making it easy to manage large inventories in demanding environments. This level of control supports compliance, improves safety, and keeps your equipment running smoothly.
You boost operational reliability when you follow these 10 tips. Regular inspections, proper installation, and preventive maintenance reduce leaks and downtime. Choosing a high-quality hose assembly, such as Novafit’s, ensures superior performance in demanding industries. Ongoing training and documentation help your team maintain safety and maximize long-term cost savings.
FAQ
What is the recommended inspection frequency for hydraulic hose assemblies in industrial equipment?
You should inspect hoses weekly for signs of wear or leaks. High-risk environments, such as mining, require daily visual checks to maintain operational safety.
How do you select the right hose assembly for construction machinery?
You match those specifications to your equipment’s pressure, temperature, and fluid requirements. Always choose assemblies tested for leaks and certified for heavy-duty applications.
What steps help prevent hose leaks in agricultural machinery?
You secure hoses with clamps, route them away from hazards, and use protective sleeves. Regular maintenance and proper installation reduce leak risks in demanding field conditions.
